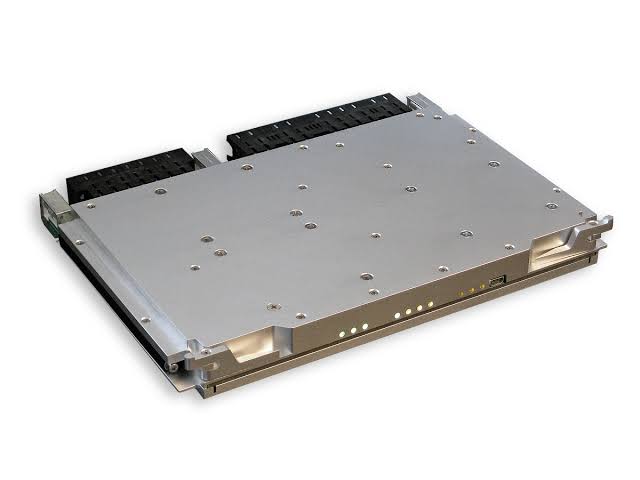

VPX Power Supply
EMSYS-VPX-230AC series COTS AC to DC is a rugged, highly reliable, Convection
cooled, switch mode unit built for high-end industrial applications.
The Power Supply is a VITA 62, Open VPX compliant, 6U front-end module that
accepts 230 VAC. Single Phase input, over wide frequency range (47-440 Hz) and delivers 850W of 24VDC power. Input current harmonics
The EMSYS-VPX-230AC has no minimum load requirement and has short circuit protection as well as over voltage and thermal protection. The module is designed to support the rigors shipboard, vehicle and mobile applications.
Features
- Open VPX VITA 62 compliant
- 6U VPX, 10HP Double slot
- Active PFC input
- Wide input frequency range, 47-440Hz
- Very low input current distortion
- High power Multiple DC output
- Low noise & ripple
- Input-output isolation
- Excellent load regulation
- Overcurrent, Over Voltage and Over temperature protection
- Efficiency of better than 80% ,High power density
- Forced air Cooled ,Conformal coating on PCB
- ENABLE*, INHIBIT* controls per VITA 62
- Output voltage FAIL* signal ,LED indication
- Remote Sense
